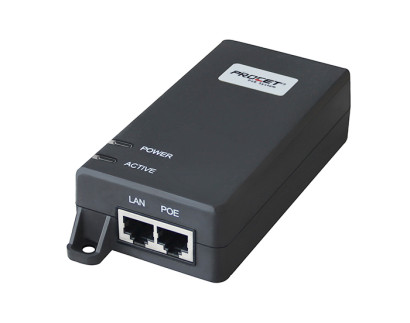

30W PoE+ Injector 55V IEEE802.3at
This single-port midspan PoE injector provides power for devices over a network cable. It can deliver up to 30 watts of power at 55 VDC and 0.55 amps. This is particularly useful for devices like IP cameras, wireless access points, IoT applications, and more.
This Power over Ethernet (PoE) injector must be used in combination with a PoE splitter (see below) to power your tablet.
Specificaties
Ports
- LAN Port
- AC Input Port
- PoE Output Port
Regulatory Compliance
- IEEE802.3at (PoE +)
- RoHS Compliance
- WEEE Compliance
Pass Through Data Rates
- 10/100/1000 Mbps
Output
- Output Power Voltage: 55V DC
- User Port Power: 30W
Input
- AC Input Voltage: 100-240 V
- User Port Power: 30W
- Frequency: 47 to 63Hz (50/60Hz Typ.)
Mechanical Characteristics
- Case: Plastic
- Color: Black
- Mounting: Wall-mounted
- IP Rated: IP40
- Connectors: Shielded RJ-45*2
- Size: 140mmX 63mmX 33mm
- Weight: 205g
Product informatie
This PoE injector supports data transfer speeds of 10/100/1000Mbps and is fully compatible with devices that follow the IEEE802.3at and IEEE802.3af standards. It's also equipped with a detection feature that checks if a device is compatible with PoE before supplying power, which helps protect non-PoE devices.
The injector comes in a fire-resistant plastic case (IP40 rated) designed for indoor use and can be wall-mounted. It works with a wide range of input voltages (100-240 VAC, 50 or 60 Hz) and can power devices up to 100 meters away using Cat5e/Cat6 cables.
