230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C

Stock: In stock
Item
35022
€62.92 €52.00

The Displine 20W USB-C built-in charger has been developed to provide a charging solution for tablets and iPads, focusing specifically on use in conjunction with our tablet wall mounts. Designed for sleek integration into walls, it is ideal for both home and professional environments. The product is compatible with Displine wall mounts and can also be utilized with various other brands of iPad and tablet wall mounts.

Product Inquiry
Specificaties

SKU manufacturer

  •  DSP-95-USB

Specifications

  • Connection: USB-C
  • Nominal input: 100 – 250 V ~, ±10 % , 50 – 60 Hz,
  • Nominal output: 5 V 3A and 9V 2,22A
  • Input voltage: 100-240V~/50-60Hz
  • Output: 5V (3A) en 9V (2,2A), 20W

Material

  • Metal support frame, plastic housing

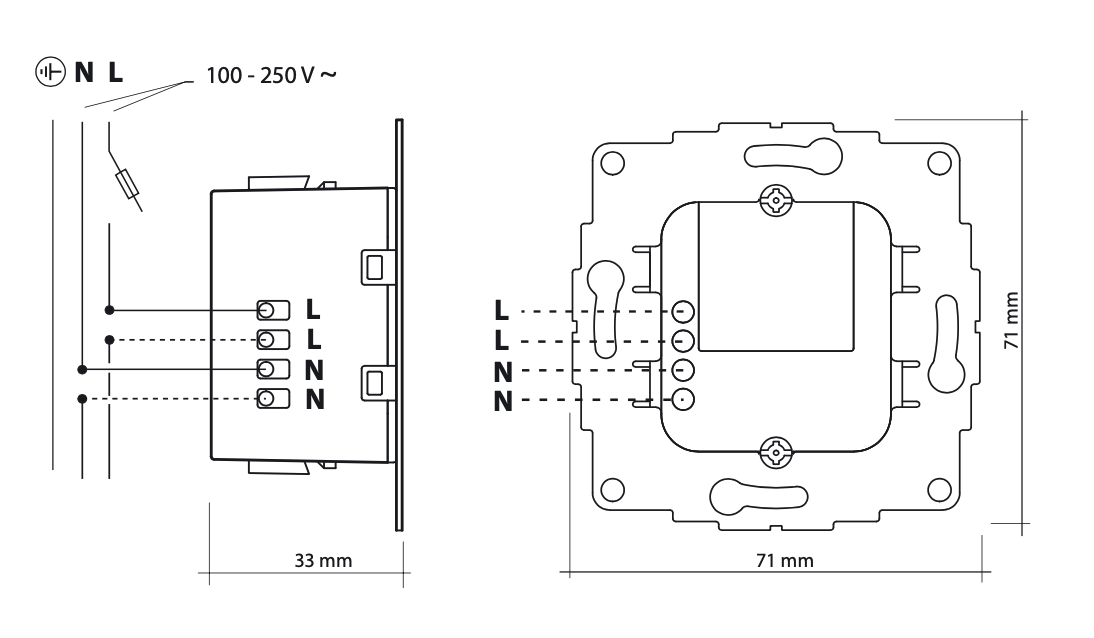

Dimensions

  • Box  80 x 80 x 50 mm (HxWxD)
  • Product  71 x 71 x 33 mm with metal frame

Weight

  • 120 g

Approvals:

  • KEMA (EUR)
  • Low Voltage Directive LVD  EN 62368-1:2014 + A11:2017
    EMC Directive EN 50032:2015
  • Ecodesign Directive 2009/125/EC, 2019/1782/EC
  • RoHS Directive 2011/65/EU, 2015/863
  • Reach Regulation EC No 1907/2006, 1272/2008
USB-C inbouw voeding voor wandcontactdoos
USB-C inbouw voeding voor wandcontactdoos 230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C 230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C 230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C 230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C 230V power supply 20W with USB C to USB-C adapter cable | sCharge s48 C
Product informatie

Features of seamless wall integration

Unlike standard adapters that are not designed for built-in use and often protrude, the Displine built-in charger offers a solution that can be integrated flush with the wall. This ensures a clean finish without visible cables, contributing to a minimalist and tidy interior. The charger is easily installed in a standard built-in box, after which a tablet or iPad holder can be placed over it for a streamlined look.

Optimal use in combination with wall mounts

The Displine 20W USB-C built-in charger is particularly suitable for use in smart living and working spaces where tablets or iPads serve as permanent components of the interior. By being compatible with a wide range of wall mounts, the charger facilitates a constant power supply for devices without any visible cables. This makes it an ideal choice for applications such as interactive information points, home automation control panels, or digital signage.

Specifications and universal compatibility

The charger supports a USB-C connection and is compatible with an input voltage of 100-240V~/50-60Hz. With output values of 5V (3A) and 9V (2.2A), it delivers up to 20W of power. The design includes a metal front plate and a plastic casing, ensuring durability. The charger is designed for installation in standard 35mm built-in boxes and is not suitable for surface mounting. It is important to note that a USB-C cable is not included.

Manufacturer part number: DSP-95-USB

The Displine 20W USB-C built-in charger offers a practical and aesthetically pleasing solution for charging tablets and iPads within an integrated wall mount setup. This product is designed to meet the needs of users who aim for a tidy living or working environment without compromising on functionality. For more information or questions about compatibility, we are ready to assist you.
